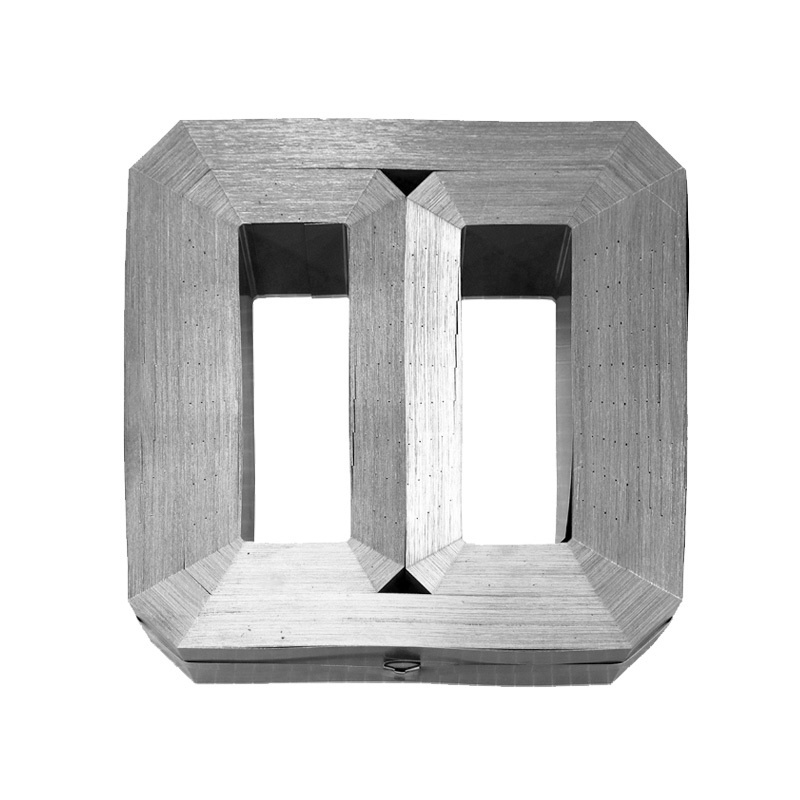

Unicore-High - Performance Soft Magnetic Core-Tran01.jpg

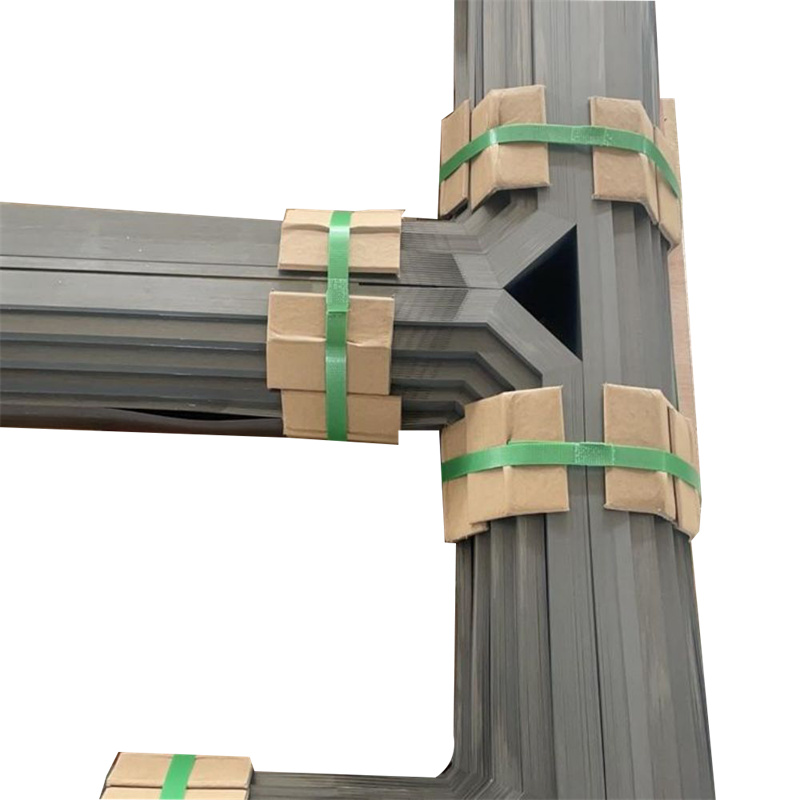

Unicore-High - Performance Soft Magnetic Core-Tran02.jpg

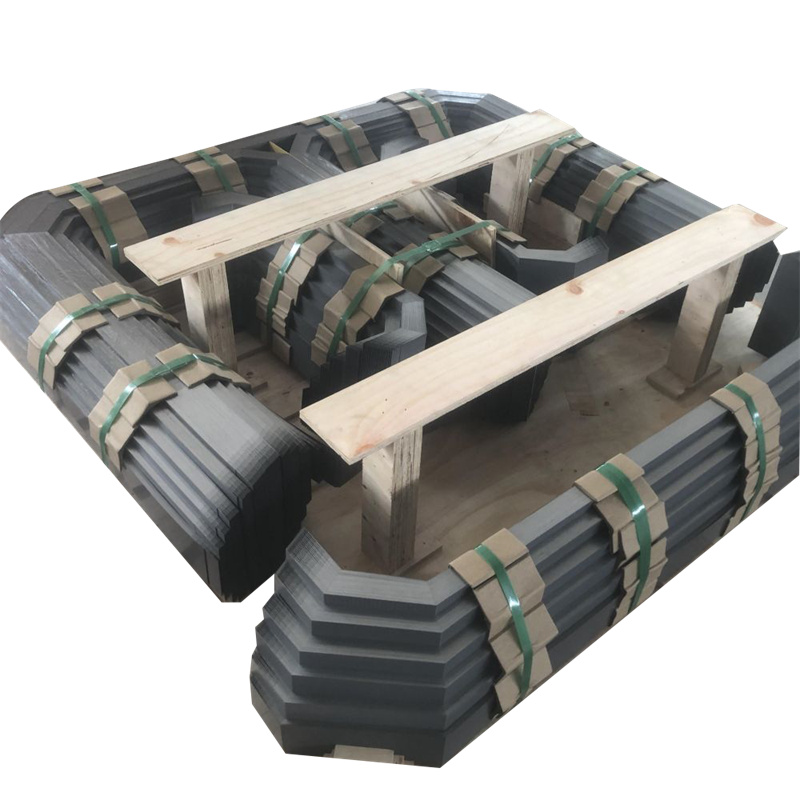

Unicore-High - Performance Soft Magnetic Core-Tran03.jpg

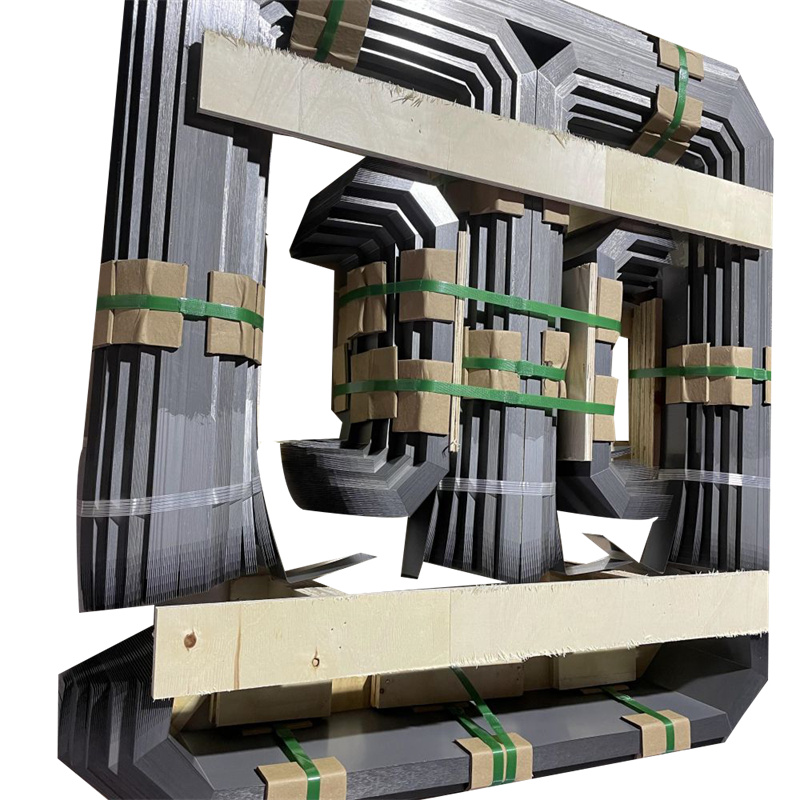

Unicore-High - Performance Soft Magnetic Core-Tran04.jpg

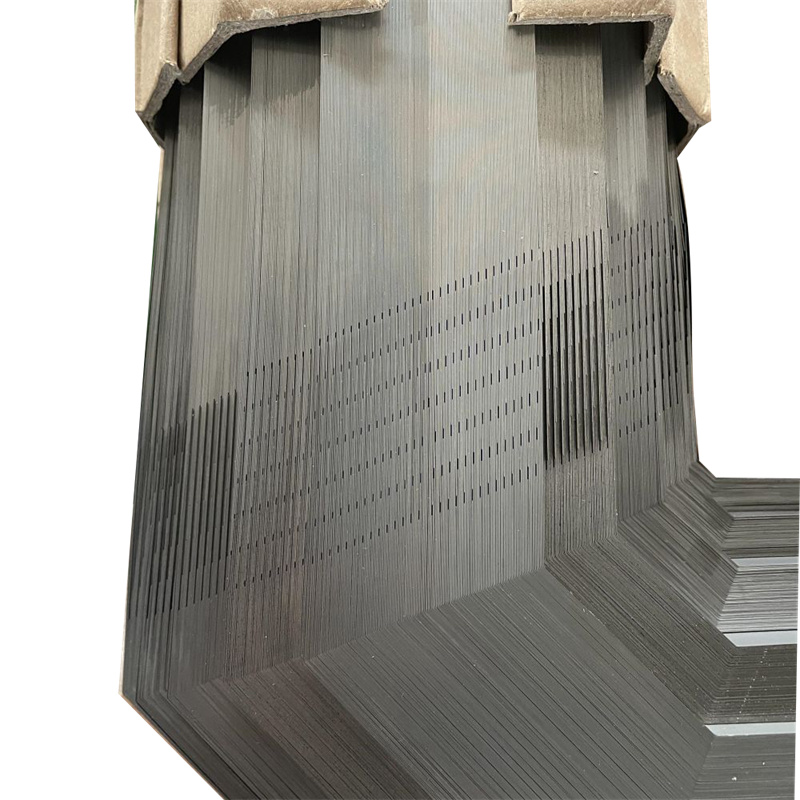

Unicore-High - Performance Soft Magnetic Core-Tran05.jpg

Unicore-High - Performance Soft Magnetic Core-Transformer Core

Unicore - Advanced Soft Magnetic Core for Efficient Energy Conversion - Low Loss
The unicore is a magnetic conductive component made of silicon steel sheets,amorphous alloys, etc.It has one or more geometric corners in its magnetic circuit. This structure breaks the linear or regular magnetic circuit design of traditional cores, and achieves specific electromagnetic functions through spatial folding or adjustment of the direction of magnetic flux lines.

    Contact us
    CT&PT

    Space Compactification:

    01

    Driven by the miniaturization requirements of electronic devices, unicore can adapt to narrow or irregular installation spaces (such as embedded devices, compact power modules, etc.), avoiding the excessive volume occupied by traditional cores.
    CT&PT1

    Adjustable Magnetic Flux Direction:

    01

    By introducing corners, the propagation path of magnetic flux lines is altered, enabling the magnetic field distribution to better meet the needs of specific circuits (e.g., magnetic circuit isolation or coupling optimization in coupled inductors and multi-winding transformers).
    CT&PT2

    Low Magnetic Leakage:

    01

    Reasonable corner design can reduce magnetic flux leakage at the core edges, improving electromagnetic conversion efficiency—particularly in high-frequency application scenarios.

    Common Applications

    • small_post
    • CT-BCT-Bushing0

    Power Electronics and Power Supply Equipment

    New Energy Inverters, EV Charging Piles: Optimize magnetic circuits to significantly reduce electromagnetic interference (EMI), meet high power density requirements, and enhance energy conversion efficiency with stable output performance.​

    Special Electromagnetic Devices​

    Medical Equipment (e.g., MRI gradient coil power supplies): Customize unicore according to space limitations to avoid magnetic field interference with precision components.​
    Aerospace Modules: Achieve strict size and weight requirements through lightweight unicore structures (e.g., nanocrystalline alloys).​

    High-Frequency Electronic Components

    RF Transformers, High-Frequency Inductors: Employ low-loss unicore to effectively suppress eddy current losses and parasitic oscillations at high frequencies, boosting signal integrity and adapting to fast-switching scenarios.​
