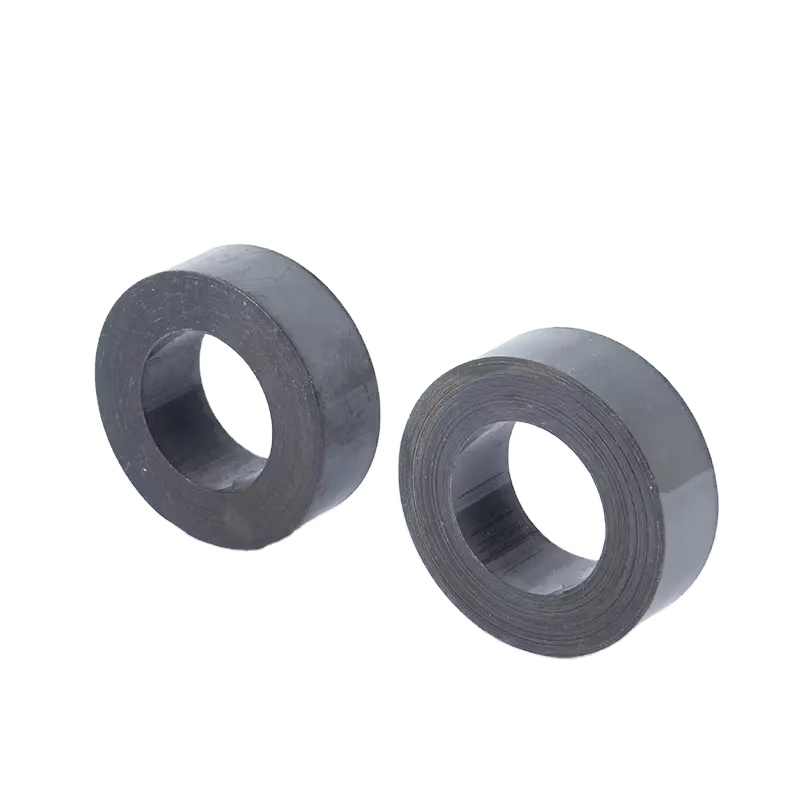

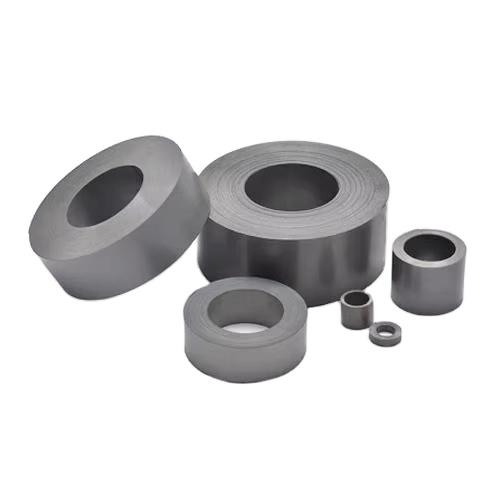

Toroidal Core-High Frequency Power Nanocrystalline Toroidal Core --High Frequency Transformer Toroidal Core

For Common Mode Choke-High Accuracy Measuring Current Transformers Component-Amplifier Transformer Component-High Permeability - Magnetic Component

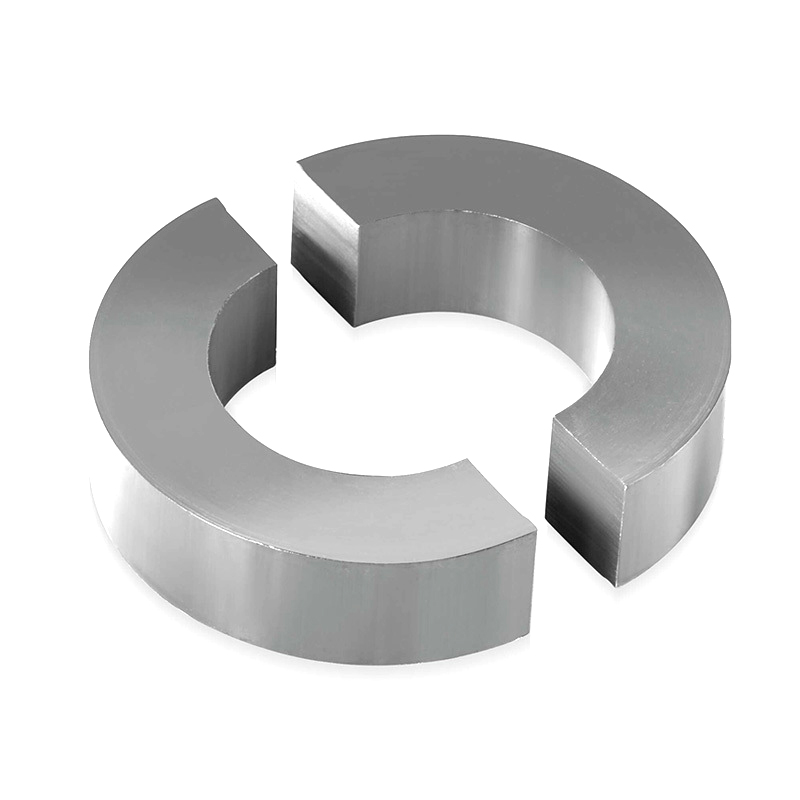

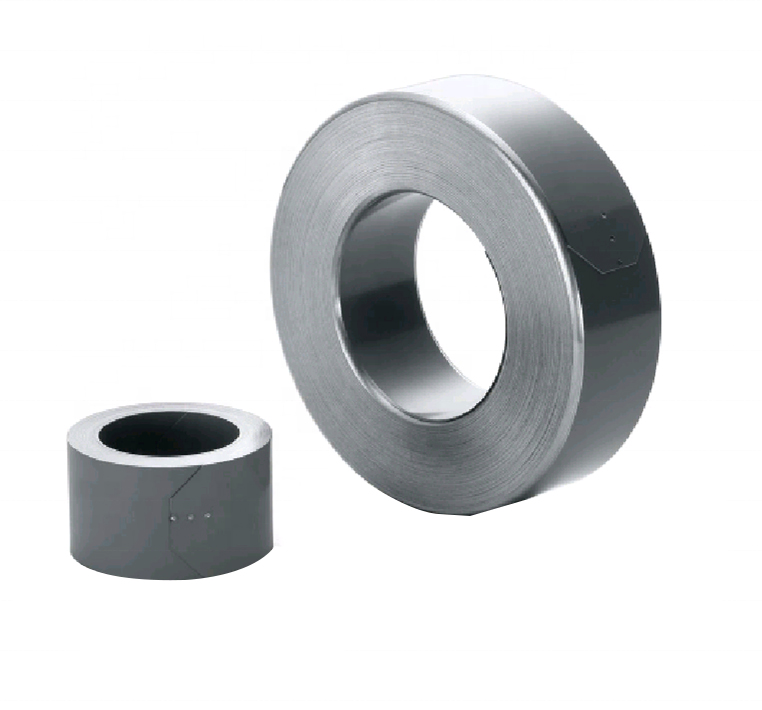

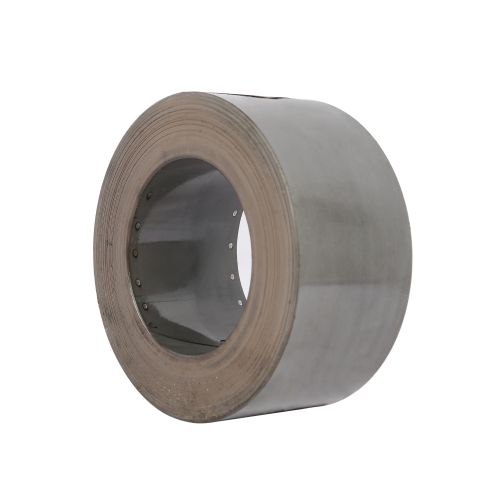

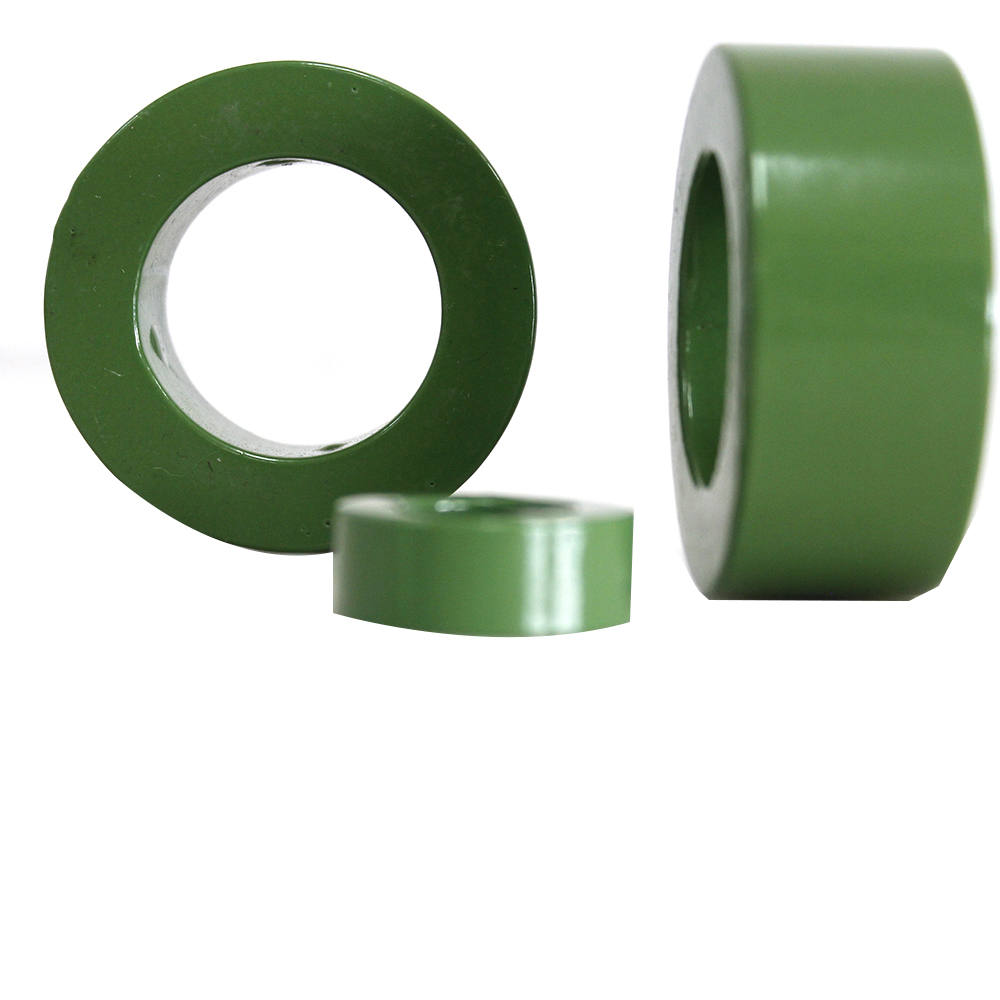

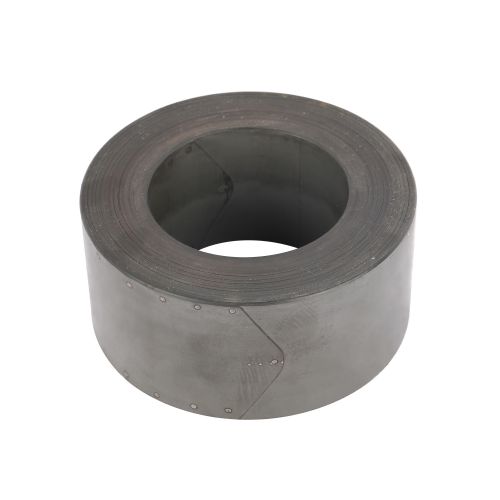

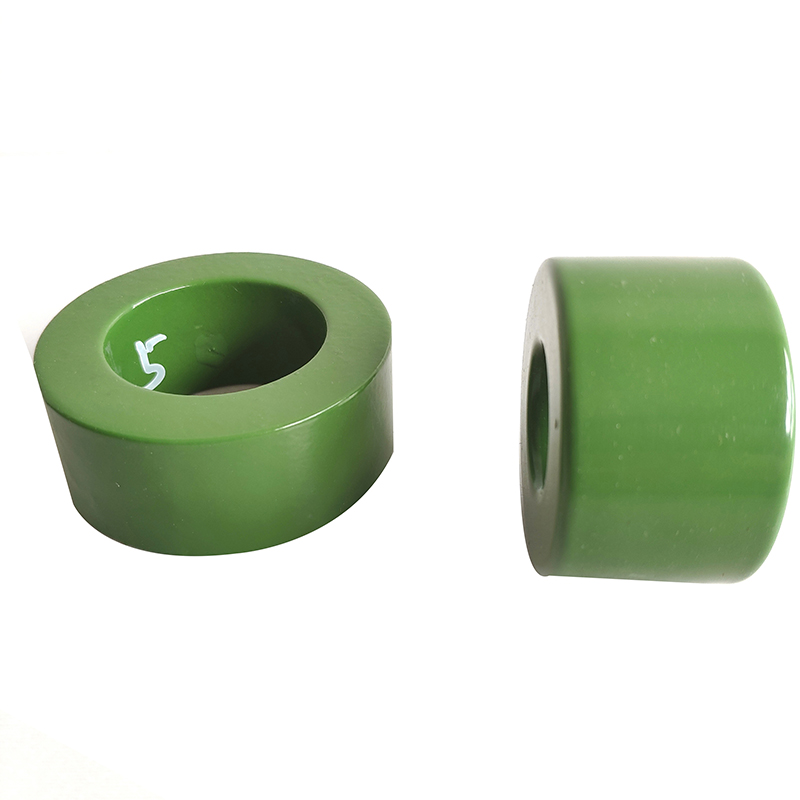

A toroidal core is a closed ferromagnetic material structure, widely used in electromagnetic devices such as transformers, inductors, instrument transformers, and magnetic ring filters. Toroidal cores are typically made of silicon steel sheets,amorphous alloys, or nanocrystalline materials.For Common Mode Choke-High Accuracy Measuring Current Transformers Component-Amplifier Transformer Component-High Permeability - Magnetic Component

Excellent Magnetic Uniformity

The annular structure of the toroidal core ensures that the magnetic lines of force are evenly distributed along the core circumference, significantly reducing magnetic field distortion and leakage. This feature allows it to maintain stable inductance performance under high current or high frequency conditions, ensuring the reliability of circuit operation.

Low Core Loss

Made of high - permeability magnetic materials and with precise winding technology, the toroidal core has extremely low hysteresis and eddy current losses. Even in high - frequency applications, it can effectively suppress energy loss caused by heat generation, thereby improving the overall efficiency of the system. For example, in switching power supplies, its low loss characteristics can increase the conversion efficiency by 3 - 5%.

High Saturation Resistance

The toroidal core has strong anti - saturation ability and can maintain linear magnetic characteristics in a wide range of magnetic flux densities. This makes it suitable for working in high - power or high - excitation current environments, such as in power transformers and inductive energy storage devices, avoiding performance degradation caused by core saturation.

Compact and Flexible Design

The symmetrical annular shape allows the toroidal core to achieve a higher space utilization rate. Compared with traditional E - type or C - type cores, its volume can be reduced by 20 - 30% under the same power conditions, while providing more flexible winding options.

Common Applications

Power Engineering Field

Power Transformers: As the core component of power transformers, the toroidal core can improve the voltage conversion efficiency of transformers, reduce no - load losses and noise, and is widely used in power grid transmission and distribution systems.

Inductive Filters: Used in power supply systems to filter out high - frequency interference signals, improve the quality of power supply, and are applied in industrial automation equipment and renewable energy power generation systems.

New Energy and Renewable Energy Field

Solar Inverters: In solar power generation systems, the toroidal core is used in the inductors and transformers of inverters to realize the conversion and transmission of DC and AC power, and improve the power generation efficiency of solar panels by 1.5 - 2%.

Wind Turbine Converters: Applied in the power conversion circuits of wind turbines, it helps to stabilize the output voltage and frequency of wind power, and enhance the grid - connected performance of wind power systems.

Energy Storage Systems: Used in energy storage batteries and converter devices to optimize the charging and discharging efficiency of energy storage systems and extend the service life of batteries.

Electronics and Consumer Electronics Field

Switching Power Supplies: As the core of switching power supplies, the toroidal core is widely used in computers, TVs, mobile phone chargers and other consumer electronics products, providing stable power support for equipment while reducing energy consumption.

Audio Equipment: Used in audio transformers and inductors to ensure the purity of audio signals, reduce harmonic distortion, and is an important component of high - end audio systems.

Communication Base Stations: In communication equipment, the toroidal core is used in RF filters and signal transformers to suppress electromagnetic interference, improve signal transmission quality, and ensure the stable operation of communication networks.
