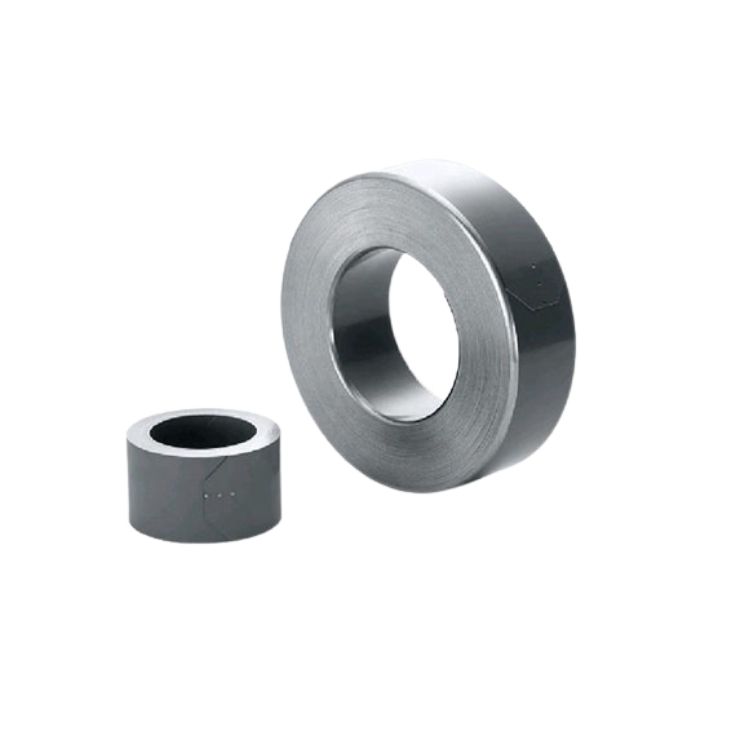

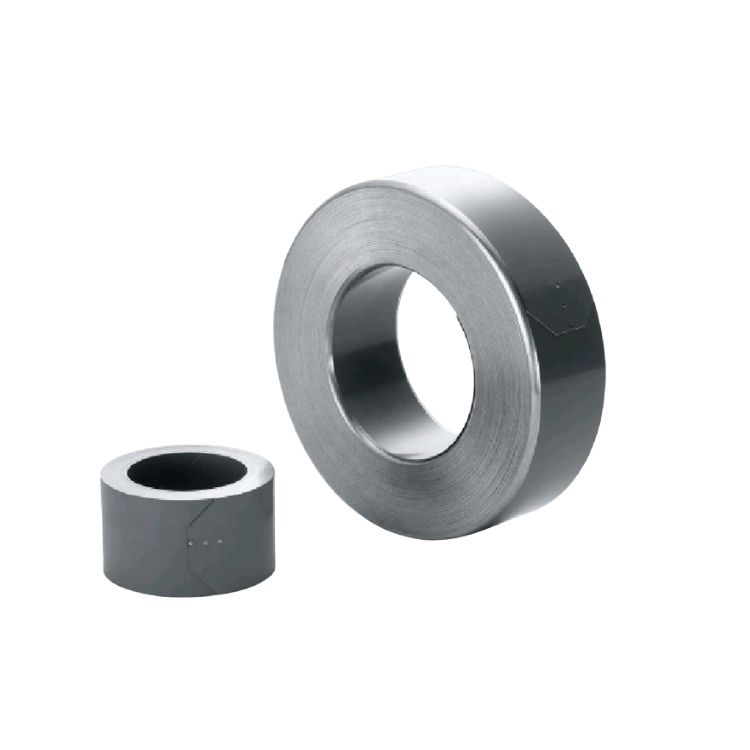

Toroidal Core - High Efficiency - Low Leakage - Precision Magnetic Core for Power Applications

Toroidal Core - Engineered for High Performance in Transformers, Inductors, and Filter Systems.

The Toroidal Core is a premium electrical core characterized by its continuous, doughnut-shaped design. Constructed from high-grade magnetic materials such as silicon steel, ferrite, or amorphous alloys, its seamless closed-loop structure eliminates air gaps, delivering superior magnetic performance. The core undergoes strict manufacturing processes, including precision winding and heat treatment, to ensure consistent inductance and minimal energy loss across diverse applications.

<span class="gray">●</span>Gray <span class="gray">●</span>Gray

High Magnetic Permeability

The toroidal structure enhances magnetic flux density, allowing efficient magnetic field propagation with low reluctance. This feature enables high inductance values in compact sizes, making it ideal for high-power transformers and inductive components.

Ultra-Low Magnetic Leakage

The closed-loop design reduces magnetic leakage by up to 80% compared to open-core structures, minimizing electromagnetic interference (EMI) and energy losses. This ensures stable operation in sensitive electronic systems, such as audio amplifiers and medical equipment.

Superior Mechanical Stability

The uniform, circular geometry provides robust mechanical strength, withstanding vibrations and thermal stresses during operation. Its durable construction ensures long-term reliability in harsh industrial environments or high-frequency switching applications.

Common Applications

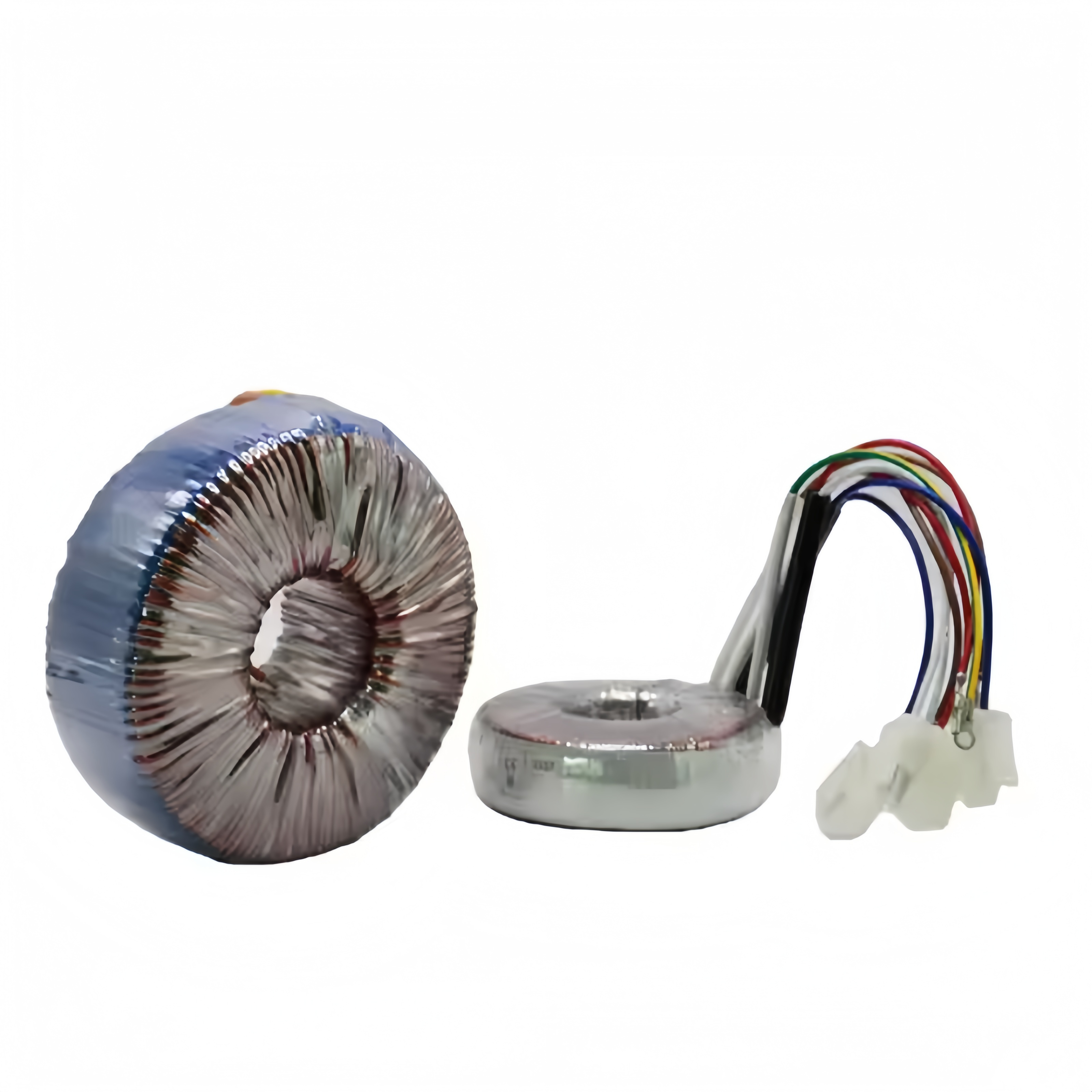

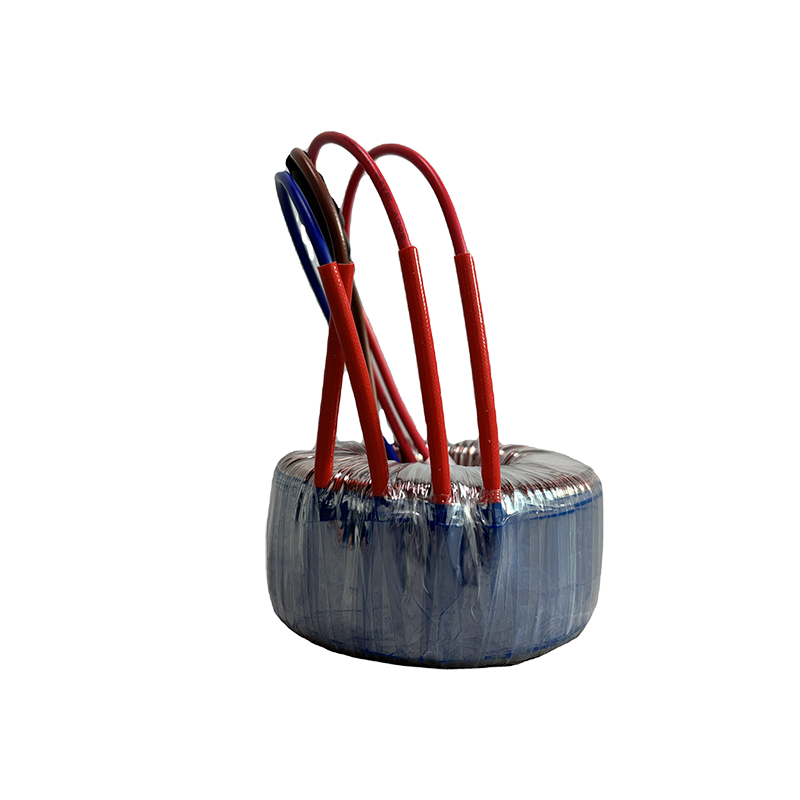

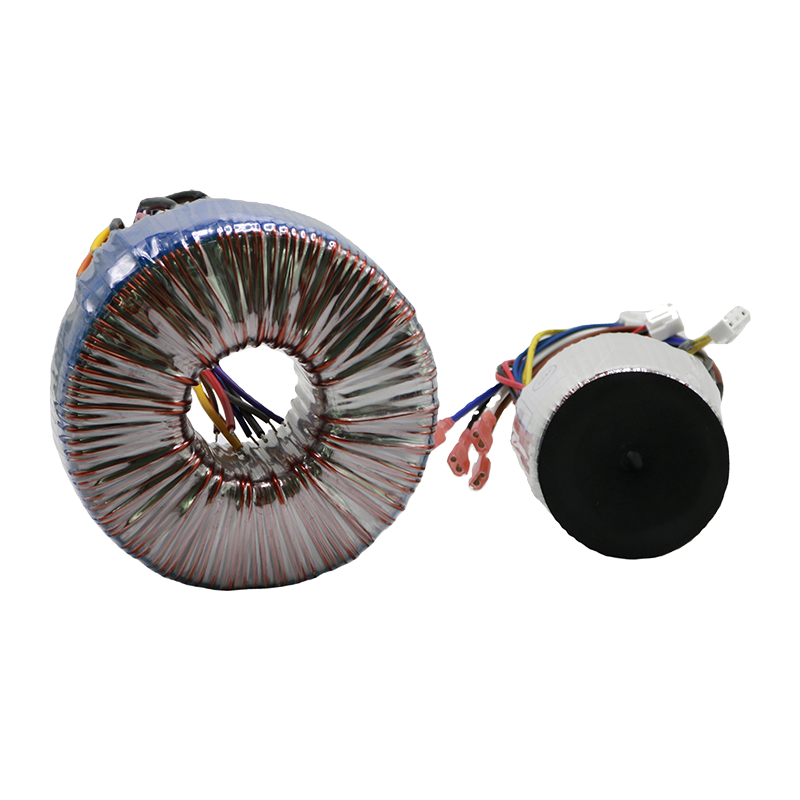

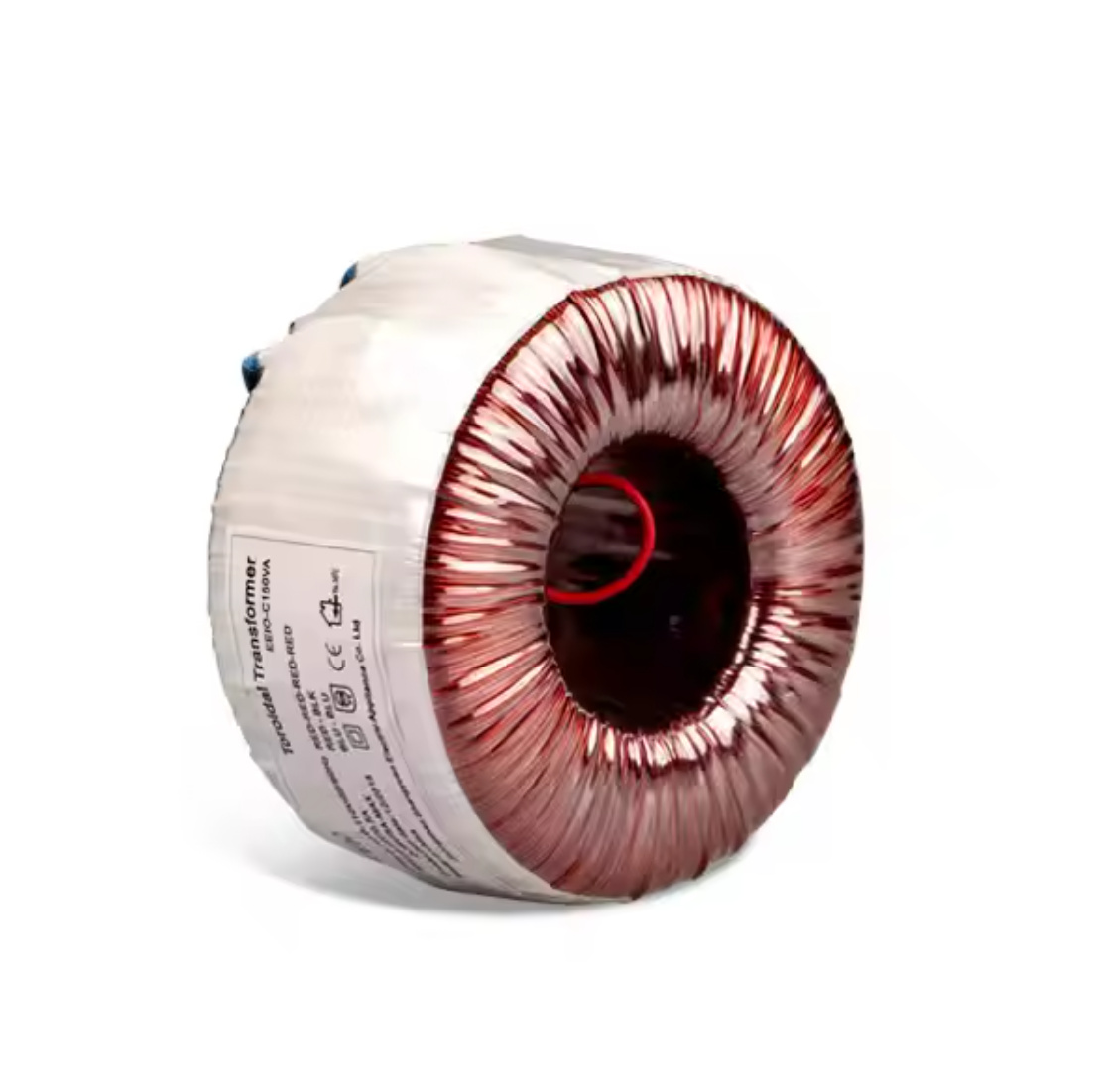

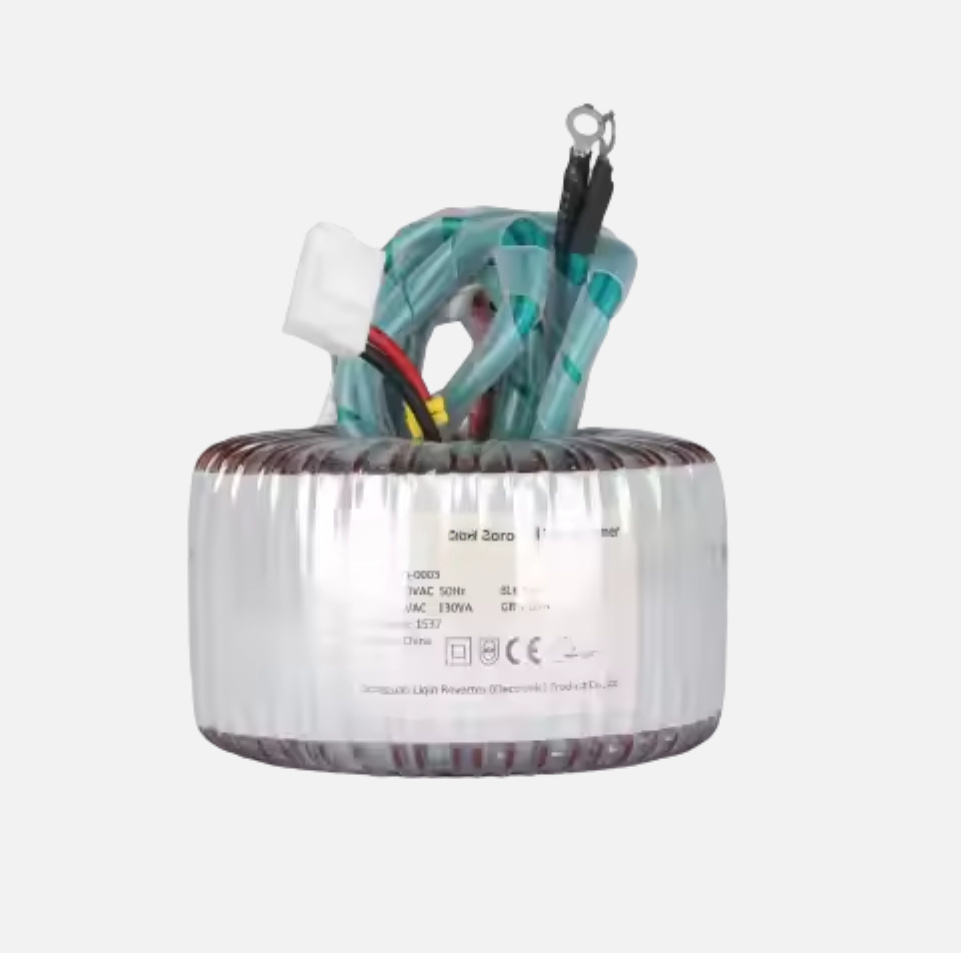

Power Transformers

Widely used in high-efficiency power supplies for data centers, renewable energy inverters, and telecommunications equipment. The toroidal core’s low loss and high power density enable compact, lightweight transformer designs..

Audio Equipment

Essential for high-fidelity audio transformers and amplifiers, where its low distortion and magnetic uniformity preserve signal integrity, delivering clear and accurate sound reproduction.

Inductive Filters & Chokes

Used in EMI/RFI filtering applications to suppress noise in power lines and electronic circuits. The core’s ability to handle high currents makes it suitable for industrial motor drives and battery management systems.
