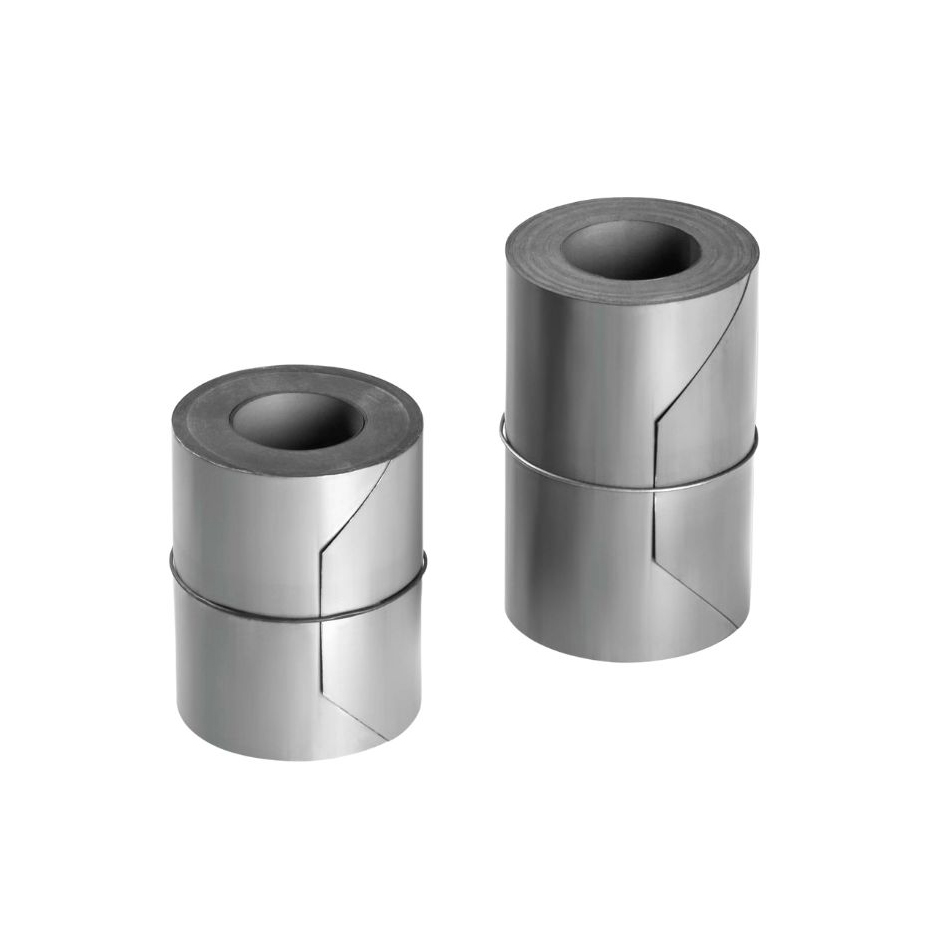

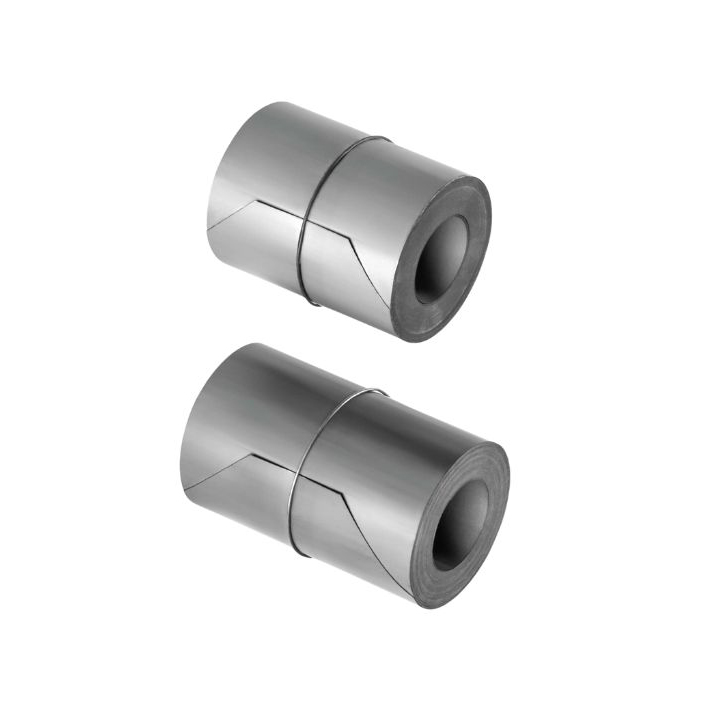

NCW Core - High - Performance, Compact, and Customizable Magnetic Core

NCW Core - Engineered for Optimal Magnetic Performance in Diverse Electrical Applications

The NCW Core represents a cutting - edge magnetic core solution designed to meet the evolving demands of modern electrical and electronic systems. Its unique structure is formed by precision - engineered components, typically made from high - grade magnetic materials such as specialized ferrite compounds, high - permeability silicon steel, or advanced amorphous alloys. This construction allows for a highly efficient magnetic circuit, making it suitable for a wide range of applications where reliable and high - performance magnetic components are required.

Exceptionally High Magnetic Permeability

The NCW Core is crafted to exhibit an extremely high magnetic permeability. This property enables it to efficiently concentrate and conduct magnetic flux, which is crucial for applications like high - frequency transformers. For example, in communication systems operating at frequencies up to 100 MHz, the NCW Core can ensure minimal signal loss during magnetic coupling, maintaining the integrity of high - speed data transmission.

Low Core Loss

Thanks to its carefully selected materials and optimized design, the NCW Core experiences remarkably low core losses. Hysteresis and eddy current losses are minimized, resulting in enhanced energy efficiency. In power - intensive applications such as industrial inverters, this low - loss characteristic can lead to significant energy savings over time. For instance, compared to traditional core designs, the NCW Core can reduce power consumption by up to 20% in certain inverter applications.

Compact and Space - Saving Design

With a focus on modern, space - constrained electronics, the NCW Core features a compact design. Its shape and dimensions are optimized to fit into tight spaces without sacrificing performance. In portable electronic devices like smartphones and tablets, the NCW Core can be integrated into the small - form - factor inductors and transformers, contributing to the overall miniaturization of the device while still providing reliable magnetic functionality.

Power Electronics

Switch - Mode Power Supplies (SMPS): The NCW Core's high efficiency and low loss make it a perfect fit for SMPS in various electronic devices, from laptops to industrial machinery. It enables the conversion of electrical power with minimal energy waste, ensuring stable and efficient operation. Inverters: Inverters used in renewable energy systems, like solar and wind power installations, benefit from the NCW Core's ability to handle high - current and high - frequency operations. It helps in converting DC power from the energy sources to AC power for grid integration or local use.

Telecommunications

RF Transformers: In radio - frequency (RF) communication systems, the NCW Core is used in RF transformers. Its high - frequency performance and low signal distortion characteristics are vital for maintaining the quality of wireless signals, whether in mobile phone base stations or satellite communication systems. Filter Inductors: Filter inductors equipped with NCW Cores are used to remove unwanted noise and interference from communication signals. This is crucial for ensuring clear and reliable data transfer in high - density wireless communication environments.

Medical Equipment

Magnetic Resonance Imaging (MRI) Systems: The NCW Core's precise magnetic field control and stability are essential in MRI machines. It helps in generating the strong and uniform magnetic fields required for accurate imaging of the human body, contributing to more accurate medical diagnoses. Portable Medical Devices: In small, portable medical devices such as hearing aids and glucose monitors, the compact size and high - performance of the NCW Core enable the integration of efficient inductive components, ensuring the reliable operation of these life - support and diagnostic devices.
