EI Core - High Reliability - Cost-Effective - Magnetic Core for Power Transformers

EI Core - Classic "E+I" Lamination Design for Efficient Voltage Conversion and Inductive Applications.

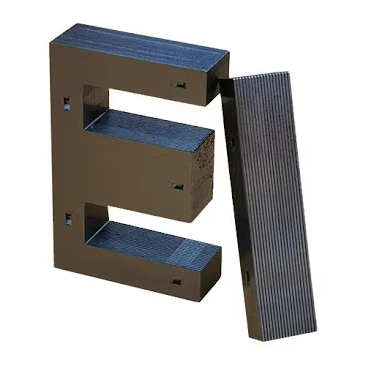

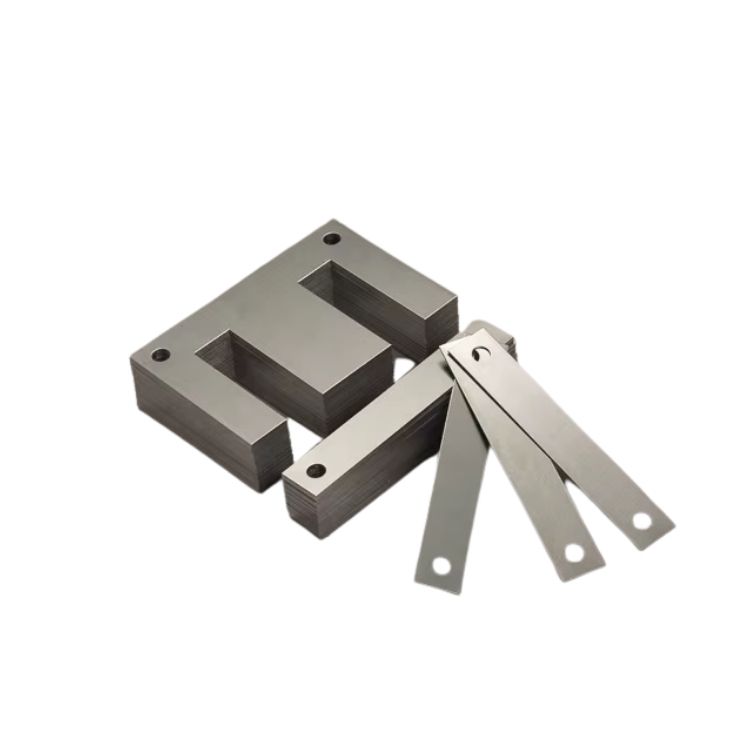

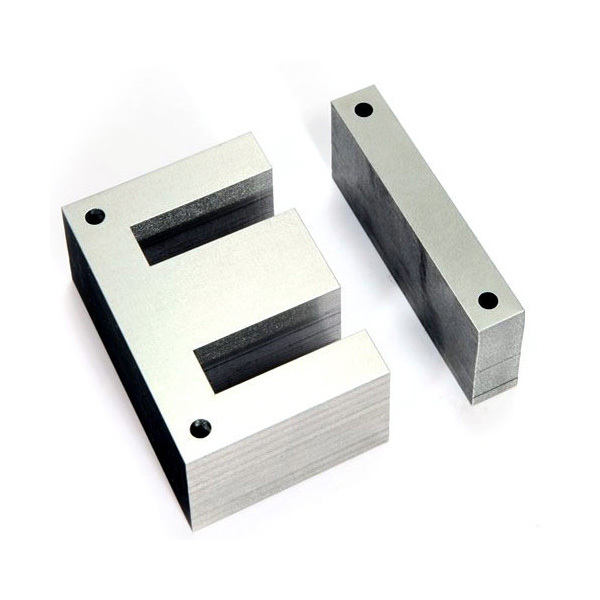

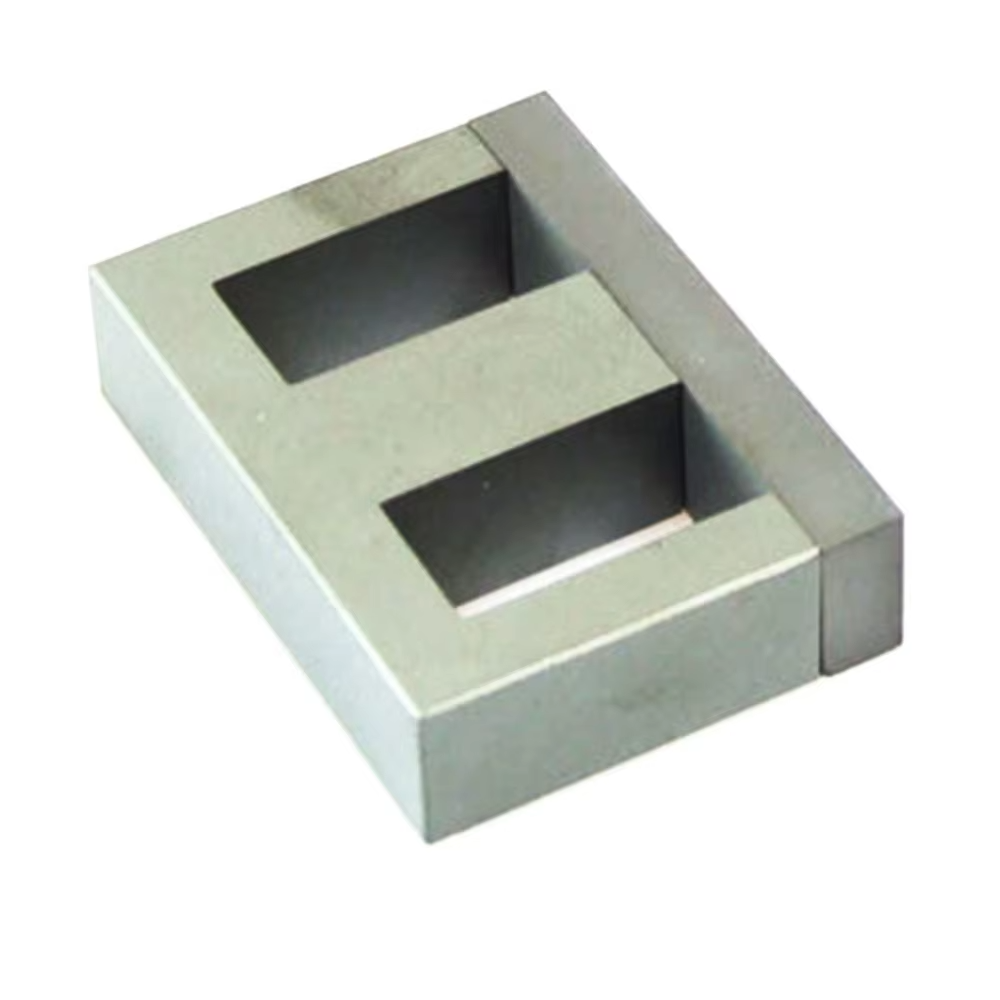

The EI Core is a foundational magnetic core structure widely used in electrical engineering. Comprising an "E"-shaped main lamination and an "I"-shaped crossbar, it forms a closed magnetic circuit when assembled. Constructed from silicon steel, ferrite, or amorphous metal laminations, this core is valued for its simplicity, cost-effectiveness, and versatility in power conversion applications. Its open-window design facilitates easy coil winding, making it a preferred choice for transformers, inductors, and filters across various industries.

Efficient Magnetic Coupling

The closed magnetic path of the EI Core minimizes magnetic leakage, ensuring high coupling efficiency (up to 95%) in power transformers. This reduces energy losses during voltage stepping (e.g., in low-voltage distribution systems) and supports stable power transmission.

Cost-Effective Manufacturing

The "E+I" lamination design allows for mass production via stamping processes, lowering manufacturing costs. Its standardized geometry simplifies inventory management and reduces assembly time, making it ideal for budget-sensitive applications like consumer electronics and small-scale power supplies.

Flexible Winding Configuration

The open central window accommodates coils of varying wire gauges and turn counts, adapting to both low-voltage/high-current inductors (e.g., in linear power supplies) and high-voltage/small-current transformers (e.g., in audio equipment). This flexibility enables wide-ranging applications from 50Hz power frequency to medium-frequency (10kHz) systems.

Common Applications

Power Transformers

Low-Voltage Distribution: EI Cores are widely used in residential and commercial transformers to step down grid voltage (e.g., from 10kV to 220V) with minimal loss, ensuring reliable power supply for homes and small businesses.

Linear Power Supplies: Ideal for laboratory equipment and analog circuits, where their stable magnetic performance filters ripple and provides clean DC output.

Audio & Signal Processing

Audio Transformers: Used in guitar amplifiers, PA systems, and hi-fi equipment for impedance matching and signal isolation, preserving sound fidelity by minimizing distortion.

Instrumentation Transformers: Supports precise voltage/current transformation in measurement devices, ensuring accurate data acquisition in industrial control systems.

Industrial & Consumer Electronics

Motor Drives: In low-power motor control circuits, EI Cores optimize inductance for smooth current regulation and protection against overcurrent.

Consumer Appliances: Found in washing machines, refrigerators, and lighting systems for efficient power conversion and noise suppression.
