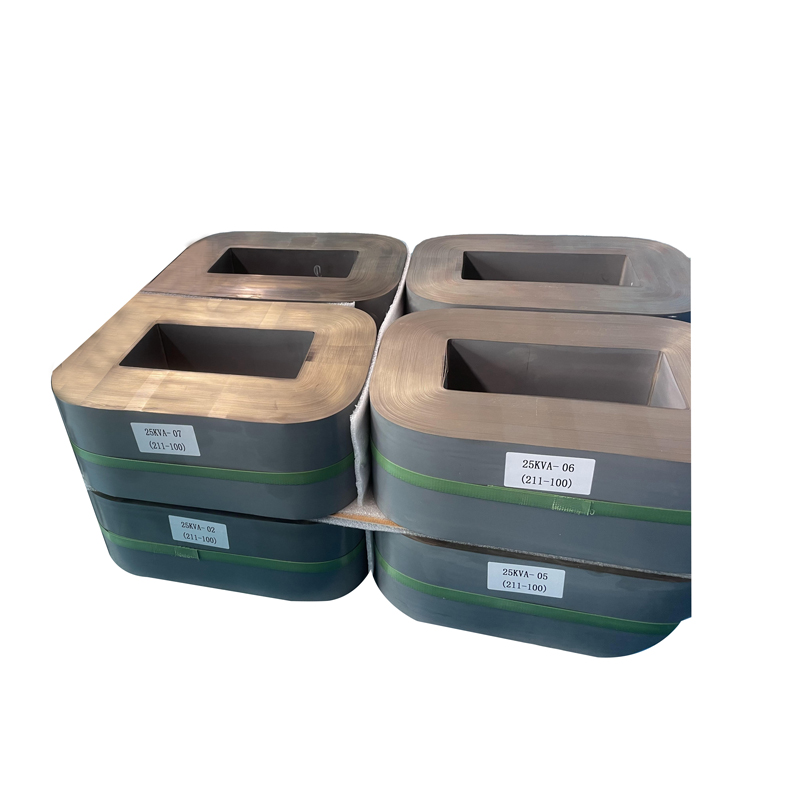

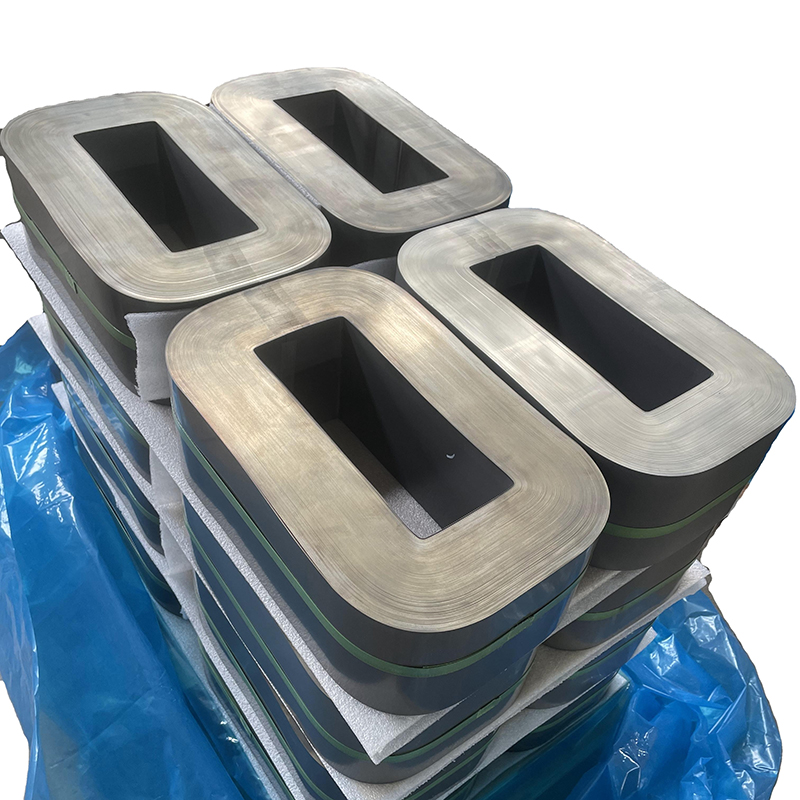

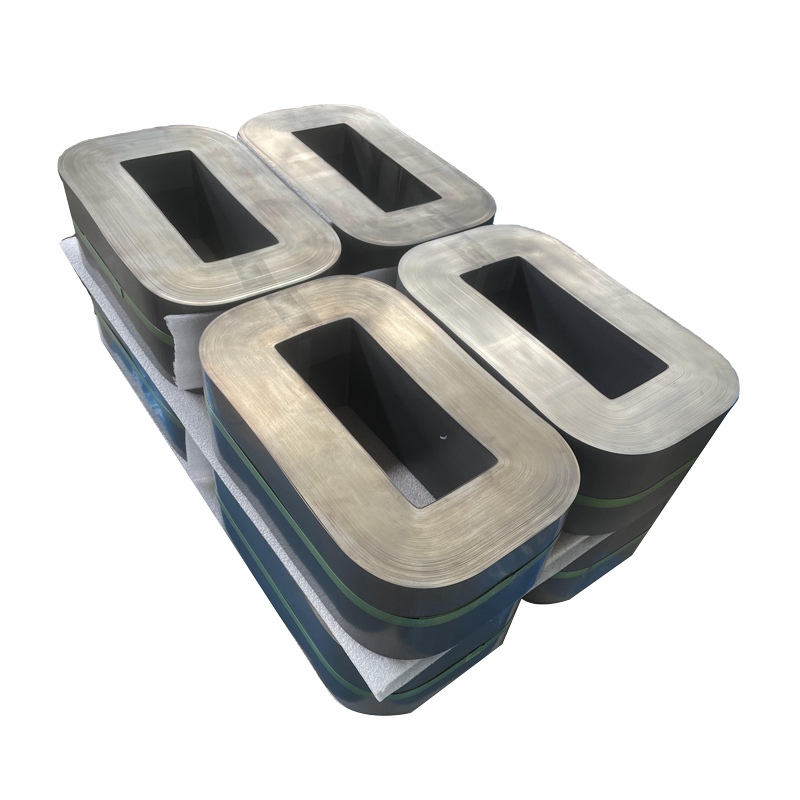

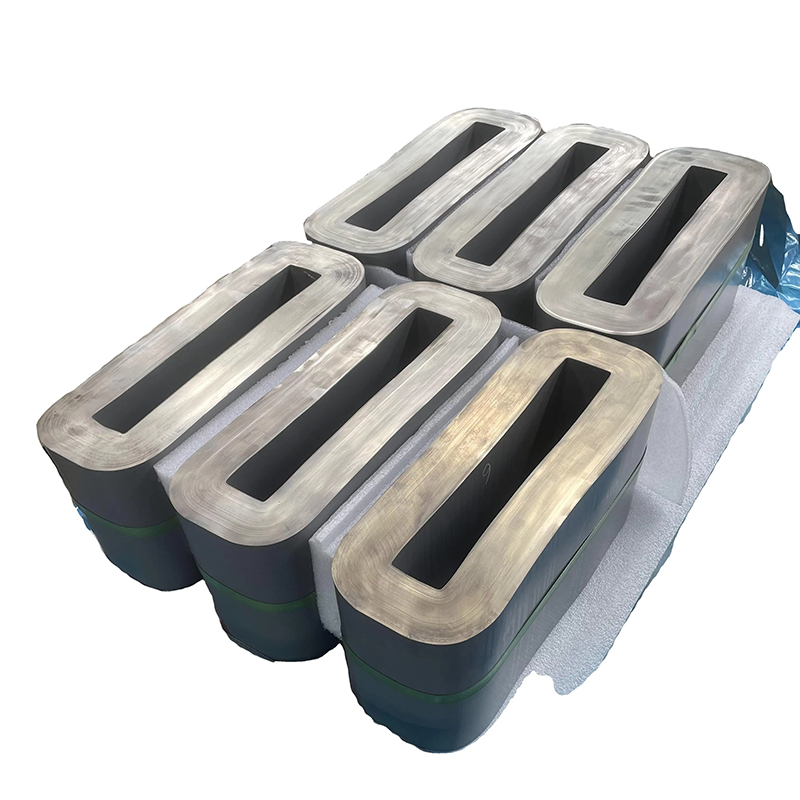

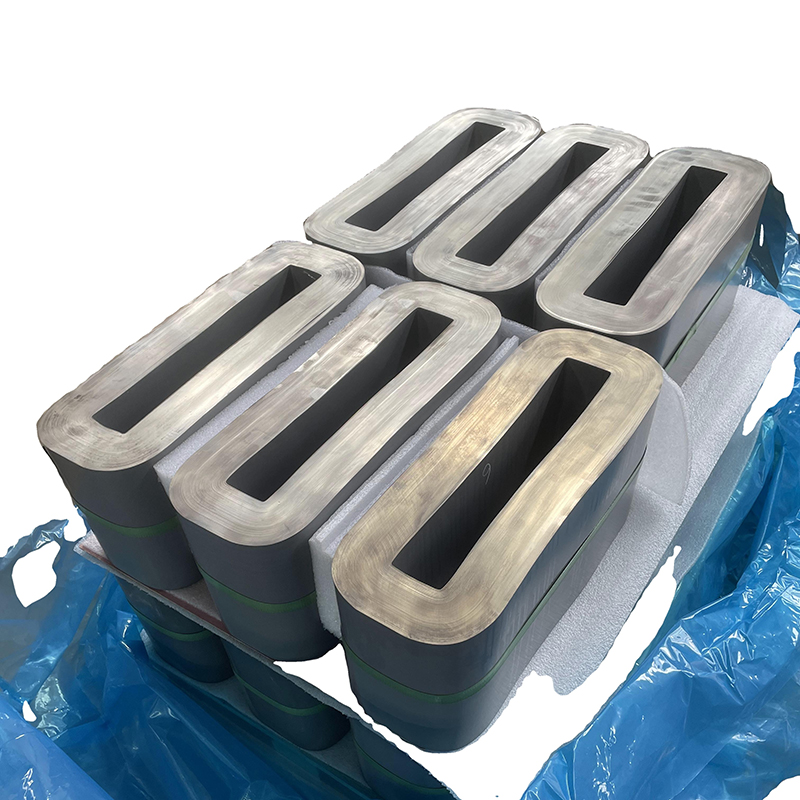

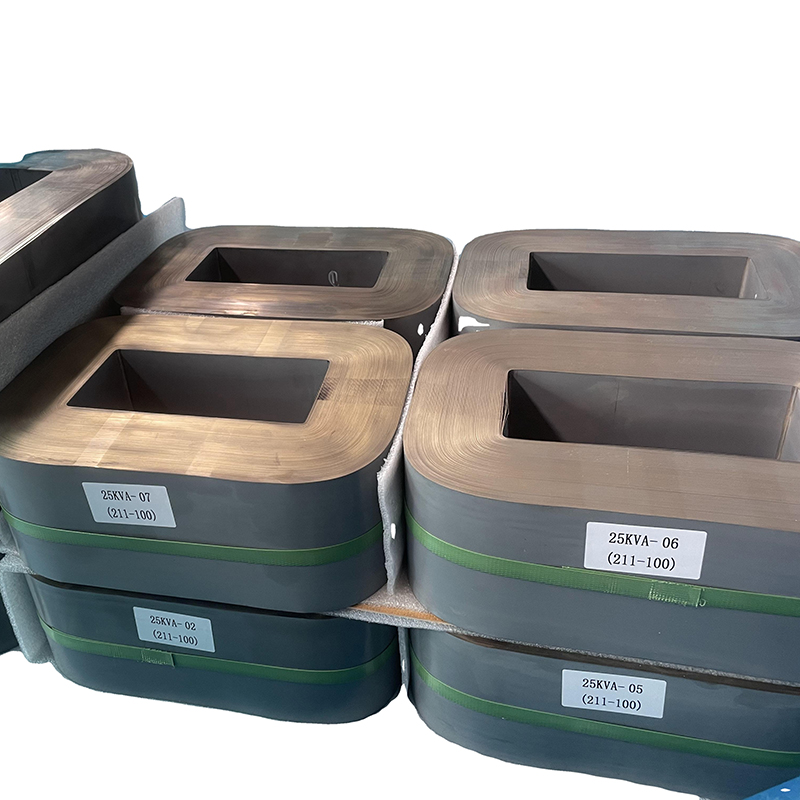

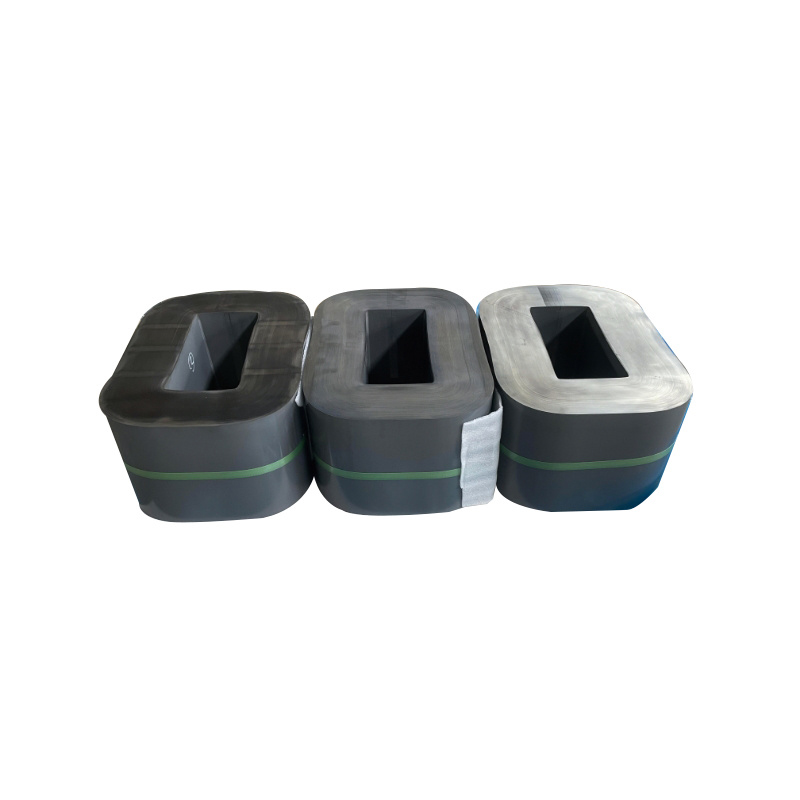

Distribution Gap Core - Ultra - Low Core Loss - High DC Bias Stability - High - Frequency Power Inductor Core

Distribution Gap Core is an advanced electrical core designed for electrical distribution systems. It features a precisely engineered gap within its structure. This gap is a key design element that gives it unique electrical and magnetic properties. The core is usually made from high - grade magnetic materials, which are carefully selected and processed to meet strict performance requirements.Distribution Gap Core - Optimized for High - Frequency Power Conversion with Enhanced DC Bias Performance and Minimal Eddy Current Losses

Adjustable Inductance

The presence of the distribution gap allows for adjustable inductance. By changing the size of the gap or the magnetic field conditions, the inductance value of the core can be fine - tuned. This feature is extremely useful in applications where precise control of inductance is necessary, such as in some types of power factor correction devices.

Reduced Saturation Tendency

The gap in the Distribution Gap Core helps to reduce the tendency of magnetic saturation. Magnetic saturation can limit the performance of electrical components by causing distortion in the magnetic field and increasing energy losses. With its design, this core can operate in a wider range of magnetic field strengths without saturating easily, ensuring stable performance.

High - Frequency Performance

It demonstrates excellent performance in high - frequency applications. The unique structure with the distribution gap enables it to handle high - frequency magnetic fields effectively. It can reduce high - frequency losses and electromagnetic interference, making it suitable for use in modern high - frequency electrical systems like some types of inverters and switch - mode power supplies.

Common Applications

Power Factor Correction

In power factor correction equipment, Distribution Gap Core is used to adjust the inductance to optimize the power factor. This helps in reducing reactive power and improving the overall efficiency of electrical power usage in industrial and commercial settings.

High - Frequency Inverters

For high - frequency inverters, which are widely used in renewable energy systems such as solar power generation, Distribution Gap Core can ensure stable operation at high frequencies. It helps in converting direct current to alternating current with minimal losses and interference, contributing to the reliable performance of the entire system.
