CD Core - High Efficiency - Low Loss - Modular Magnetic Core for Power Electronics

CD Core - Engineered for Optimal Performance in Transformers, Inductors, and High-Frequency Applications.

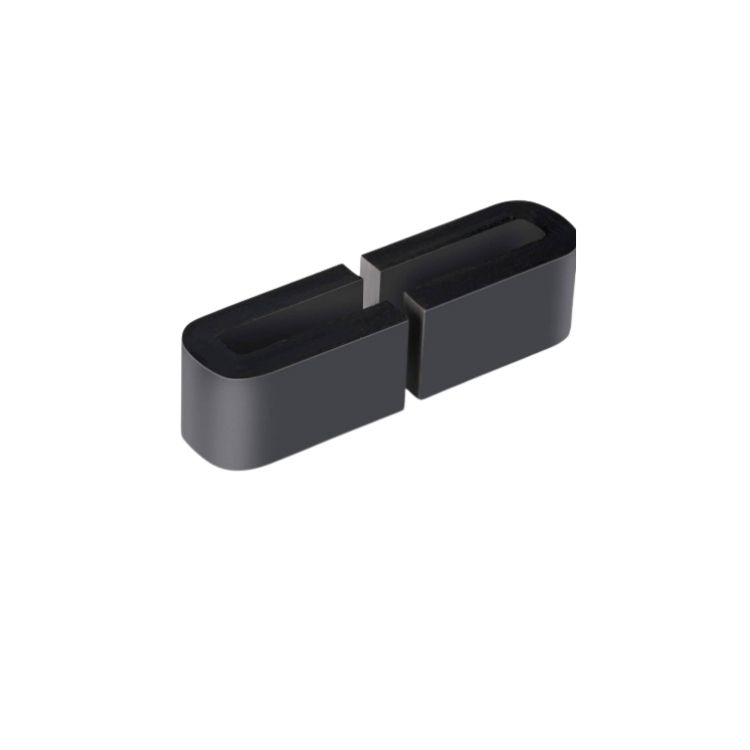

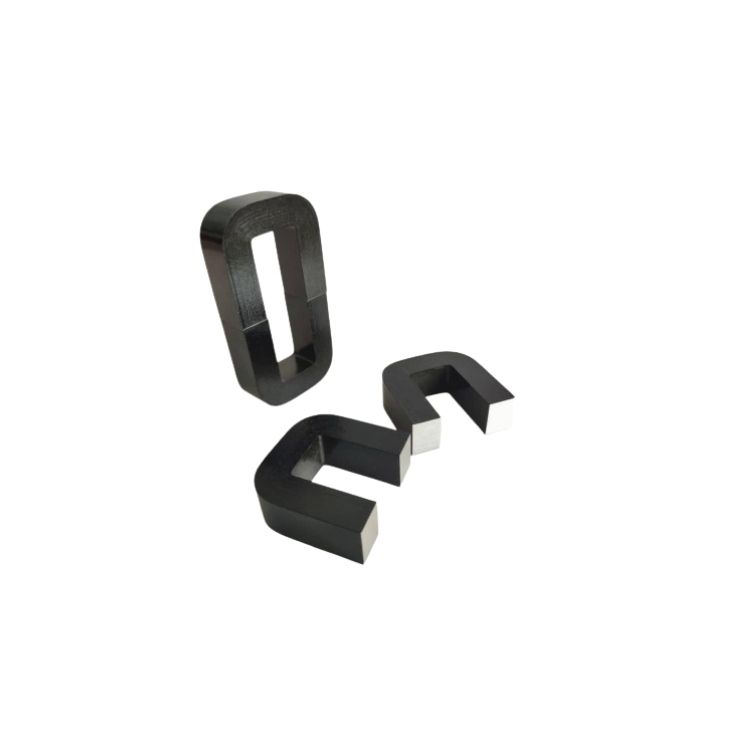

The CD Core is a specialized magnetic core designed for high-performance electrical applications. Composed of two precision-machined halves (typically in a "C" and "D" configuration), it forms a closed magnetic circuit with minimal air gaps when assembled. Constructed from premium-grade silicon steel, ferrite, or amorphous alloy materials, the core offers exceptional magnetic properties and structural integrity. Its modular design allows for easy integration with coils and windings, making it ideal for applications requiring high efficiency and compact form factors.

Low Core Loss

The CD Core's high-quality materials and optimized lamination structure minimize hysteresis and eddy current losses, ensuring efficient energy conversion even at high frequencies (up to 100kHz). This feature reduces heat generation and improves overall system efficiency.

High Saturation Flux Density

Engineered to withstand high magnetic fields without saturation, the core supports high-current applications while maintaining linear magnetic performance. This makes it suitable for power transformers and inductors in industrial and renewable energy systems.

Customizable Air Gap

By adjusting the mating surfaces or inserting non-magnetic spacers, the air gap can be precisely controlled to tailor inductance values and magnetic properties for specific applications.

Common Applications

Power Electronics

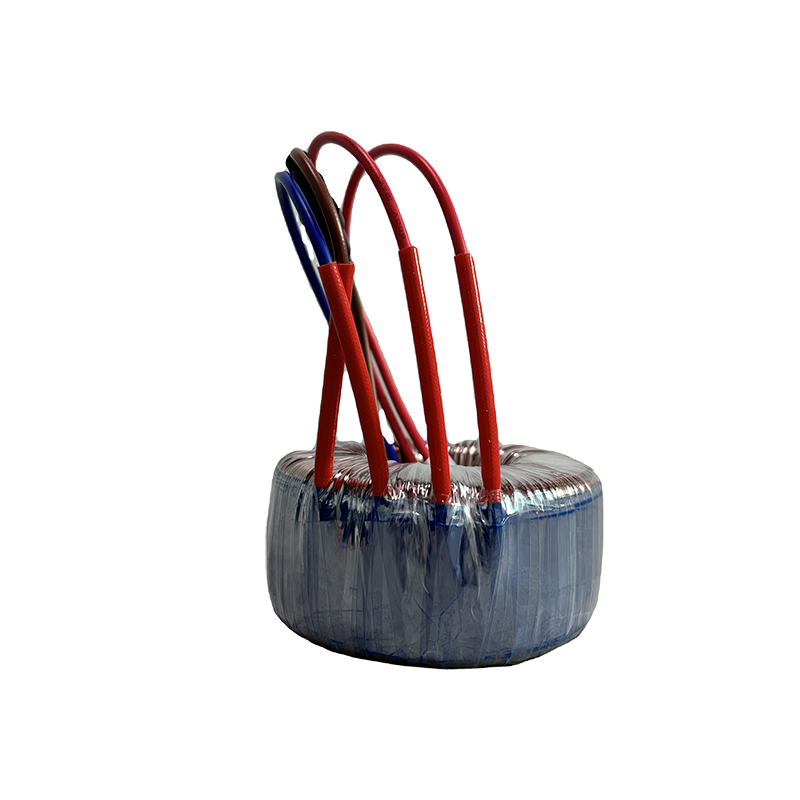

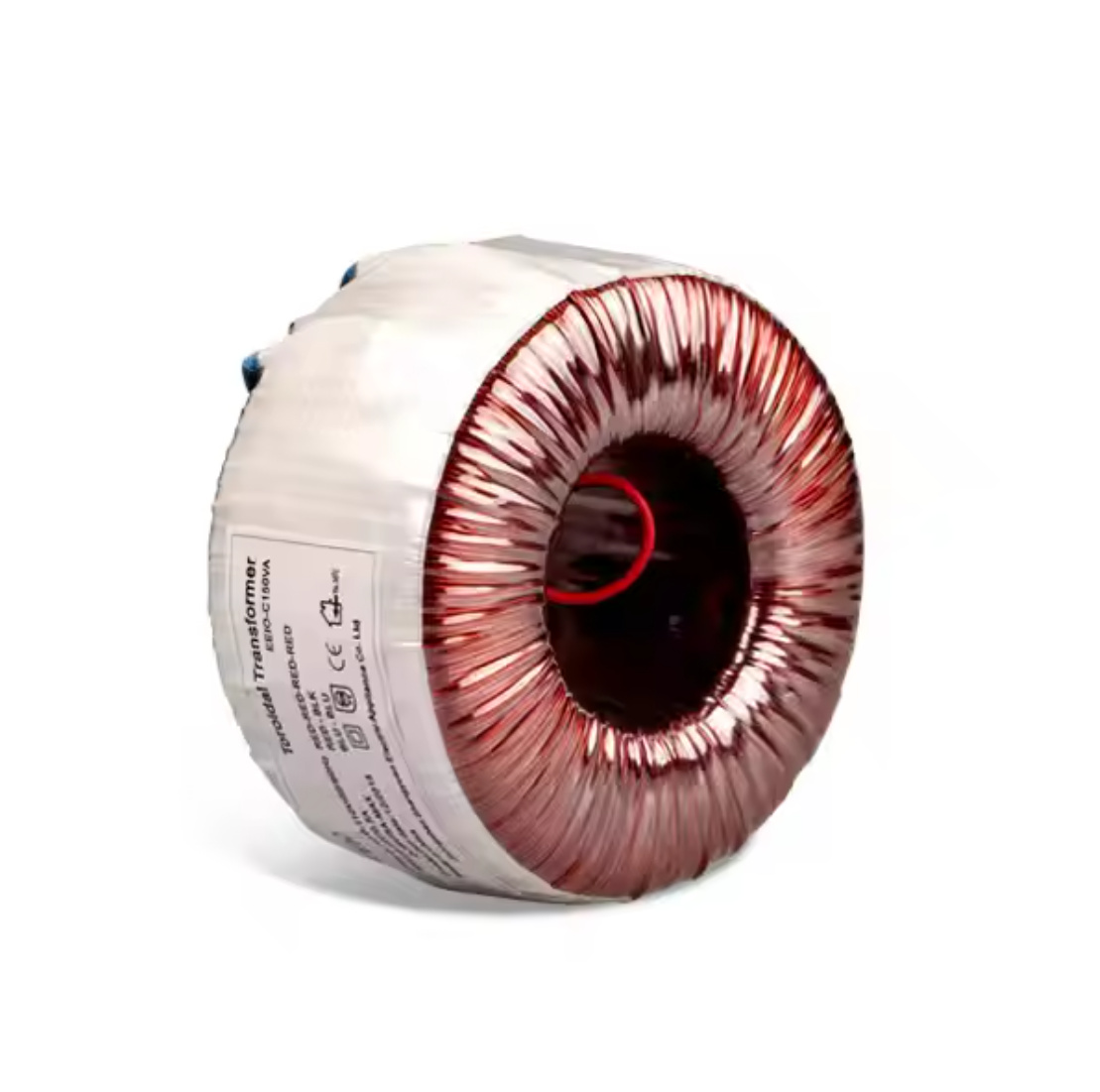

Widely used in high-efficiency power supplies for data centers, renewable energy inverters, and telecommunications equipment. The toroidal core’s low loss and high power density enable compact, lightweight transformer designs.

Industrial Equipment

Ideal for high-power inductors and reactors in motor drives, welding equipment, and uninterruptible power supplies (UPS). Its robust construction ensures reliable operation in demanding industrial environments.

Telecommunications

Used in high-frequency transformers and filters for telecom infrastructure, where low loss and compact size are critical for maintaining signal integrity and minimizing energy consumption.
